Klipsch Reference Series Home Cinema System (5-piece RF-83 set) + sub - $1,900
QR Code Link to This Post
These are high-sensitivity speakers, meaning you don’t need extra powerful amplifiers – your Denon/Onky/Sony or whatever AV receiver can drive this system just fine.
Everything is overbuilt. The towers are a bass reflex design, with three eight-inch drivers and a horn tweeter. They produce amazing bass down to 29Hz and beyond. I’ve run these with no sub, and found they shake the room just fine on their own. The center channel is the biggest I’ve ever seen, with four six-inch drivers and a horn. It produces better sound than a lot of mains do! The surround speakers are also well made, each with two six-inch drivers and two horns.
I have a Klipsch KSW-15 fifteen-inch sub that did not come with this set. I will include it with a full-price offer, or we can discuss it separately.
Condition is great. There are a few scuffs, but nothing serious. The grills have all of the original cloth, all in good condition. The black finish is ash veneer on the fronts and center, black vinyl on the backs and sub. All drivers and electronics are in perfect working order.

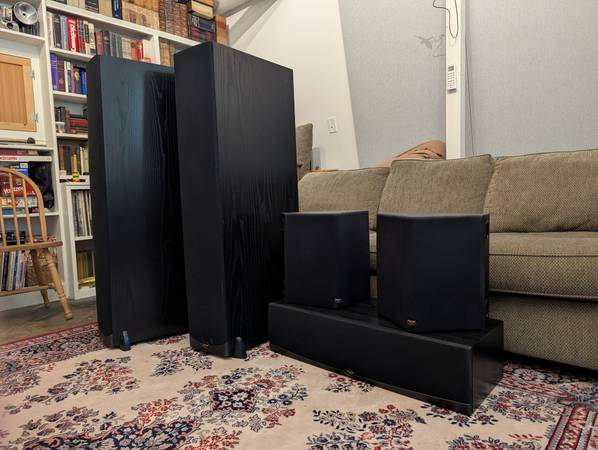

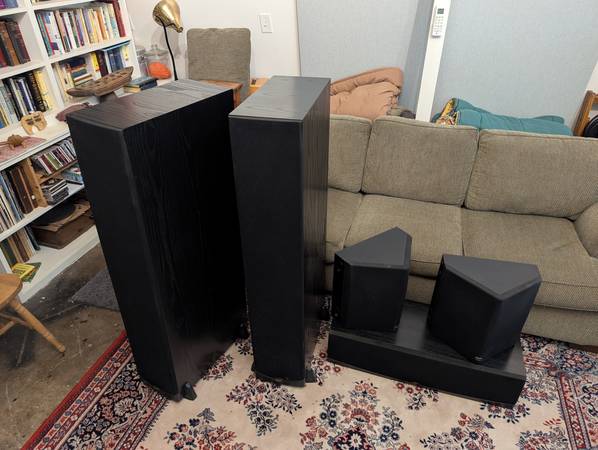

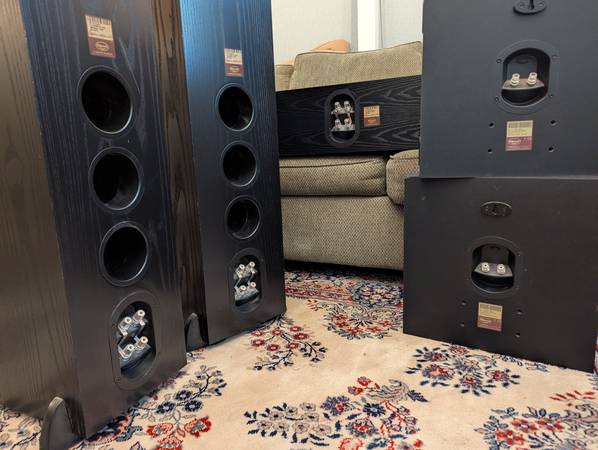

Included in this sale:
2x Klipsch RF-83 front tower speakers
2x Klipsch RS-62 surround speakers
1x Klipsch RC-64 center speaker
1x Klipsch KSW-15 subwoofer
SPECIFICATIONS

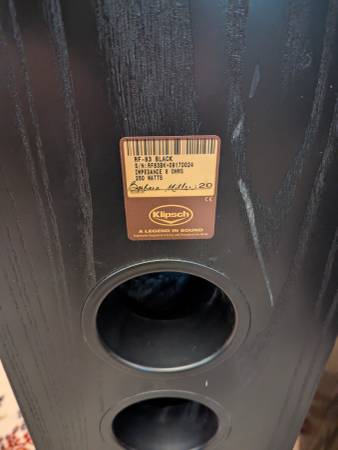

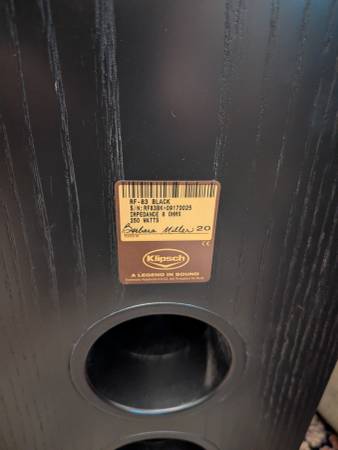

RF-83 towers:
Frequency response 29hz-21khz ± 3db
Power handling 250w rms / 1000w peak sensitivity 100db @ 2.83v / 1m
Nominal impedance 8 ohms compatible
High frequency drivers 1.25" (3.2cm) titanium diaphragm compression driver mated to 90˚x 60˚ square tractrix® horn
High frequency crossover 1650hz
Low frequency drivers triple 8" (20.3cm) high-output cerametallic™ cone woofers

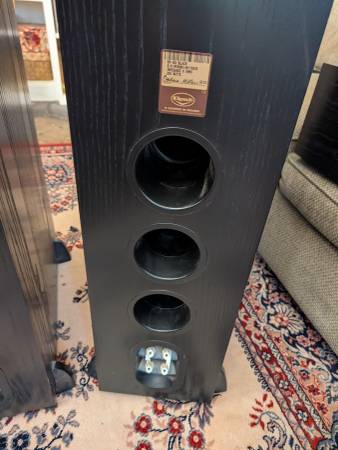

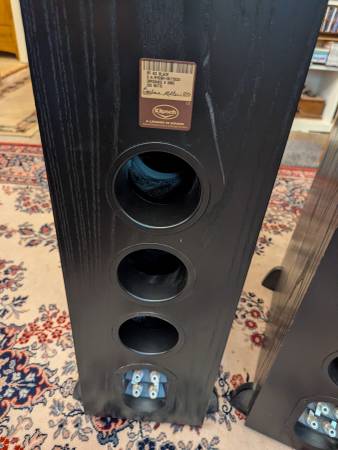

Enclosure type bass-reflex via triple rear-firing ports
Height 49.6" (126cm) (w/feet)
Width 9.25" (23.5cm)
Depth 20.5" (52.1cm)
Weight 100 lbs (45.4kg)
Finish black ash wood veneer
RC-64 center:
Frequency response 62hz-21khz ± 3db
Power handling 200w rms / 800w peak
Sensitivity 99db @ 2.83v / 1m
Nominal impedance 8 ohms compatible
High frequency drivers 1.25" (3.2cm) titanium diaphragm compression driver mated to 90˚x 60˚ square tractrix®
Horn high frequency crossover 1150hz, 1800hz
Low frequency drivers quad 6.5" (16.5cm) high-output cerametallic™ cone woofers
Enclosure type sealed
Height 8" (20.3cm)
Width 33" (83.8cm)
Depth 13.5" (34.3cm)
Mounting uptilt and downtilt feet
Weight 61 lbs (27.7kg)
Finish black ash wood veneer

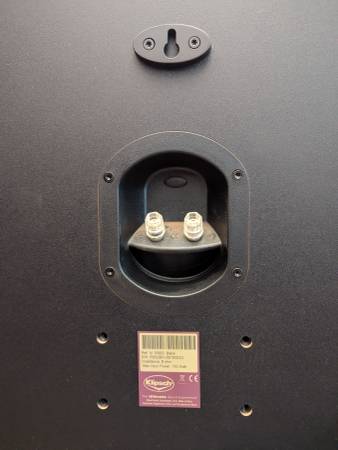

RS-62 surround:
Frequency response 50hz-23khz ± 3db
Power handling 150w rms / 600w peak
Sensitivity 97db @ 2.83v / 1m
Nominal impedance 8 ohms compatible
High frequency drivers dual 1" (2.54cm) titanium diaphragm compression drivers mated to 90x60 square tractrix® horns
High frequency crossover 2000hz
Low frequency drivers dual 6.5" (16.5cm) cerametallic™ cone woofers
Enclosure type bass-reflex via quad side-firing ports
Height 15" (38.1cm) width 14.75" (37.5cm) depth 9.75" (24.8cm)
Mounting keyhole bracket and dual 1/4"-20 threaded inserts weight 28lbs (12.7kg)
Finish matte black vinyl

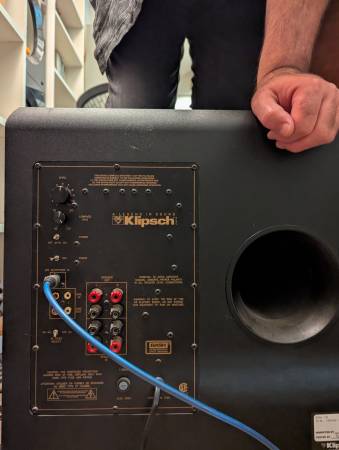

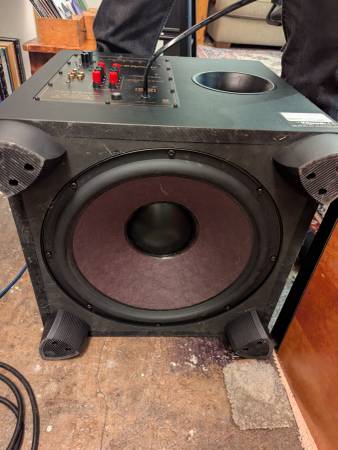

KSW-15 subwoofer:
Type: 15" bass reflex, tuned port enclosure
Amplifier: peak output power 800 watts into 16 ohms
FTC rated power: 265 watts into 16 ohms 22-100hz @ 1%thd maximum auto power on: 2 second on delay, 15 minute off delay
Frequency response: 24-120hz±3db
Maximum acoustic output: 121db 1/8 space 1 meter
Low pass crossover: continuously variable from 40-120hz, 24db/octave slope above 120hz

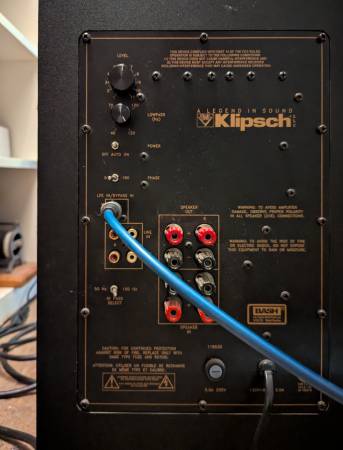

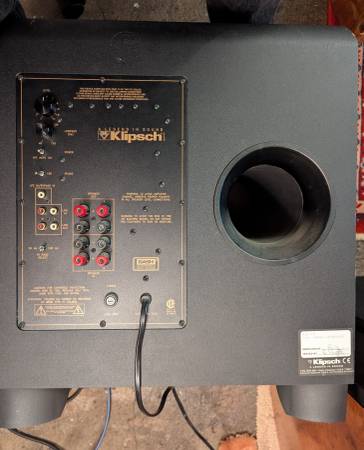

Inputs: 2) line level rca phono jacks 1) line level dedicated lfe channel input (non-filtered) 2) high level speaker terminals
Outputs: 2) line level rca phono jacks with switchable high pass filter between 50 and 100hz 2) high level speaker terminals with fixed high pass at 100hz, 6db/octave slope
Phase: switchable 0-180 degrees
Drive component: k-1072-k 15" (38.1cm) driver
Net weight: 45 lbs. (20.45kg)
Height: 19.5" (49.53cm)
Width: 17.5" (44.45cm)
Depth: 17.5" (44.45cm)
Cabinet: medium density fiber board construction (mdf)
Finish: matte finish black vinyl
