* * * * 400 amp panel * * * * brand new in box * * * Square D * * * - $2,400 (Sacramento)

‹ image 1 of 6 ›
* * * * 400 amp panel * * * * brand new in box * * * Square D * * * 1
* * * * 400 amp panel * * * * brand new in box * * * Square D * * * 1 thumbnail* * * * 400 amp panel * * * * brand new in box * * * Square D * * * 2 thumbnail* * * * 400 amp panel * * * * brand new in box * * * Square D * * * 3 thumbnail* * * * 400 amp panel * * * * brand new in box * * * Square D * * * 4 thumbnail* * * * 400 amp panel * * * * brand new in box * * * Square D * * * 5 thumbnail* * * * 400 amp panel * * * * brand new in box * * * Square D * * * 6 thumbnail
Leona Circle near El Centro Road
condition: new
make / manufacturer: Square D
delivery available

more ads by this seller

QR Code Link to This Post

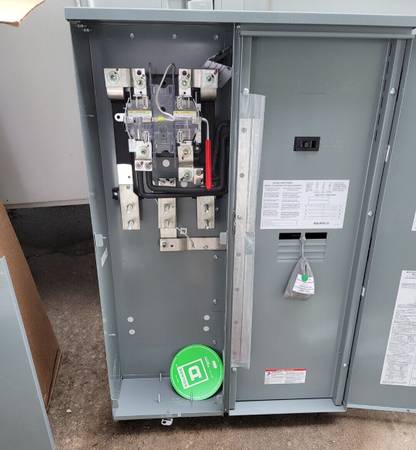

I bought a brand new 400 amp electrical panel for my new house (under construction) to connect to my subpanels which are 200 amps each, but my electrician did not use it since he had a different one. I believe this single phase / 1-phase ... it is not three phase / 3-phase

Brand: Schneider Electric
Make: Square D
Model Number: CUM400CB

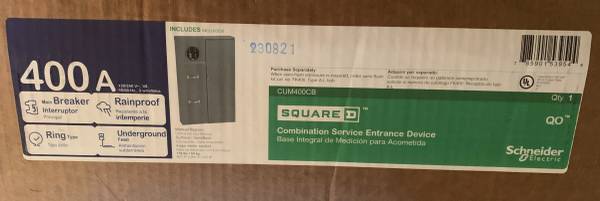

Combination Service Entrance Device
- main breaker
- ring type
- rainproof
- underground feed
- 120/240v -- 1 phase
- 50/60 Hz
- Meter mains, QO, CSED, ringed socket, 400A, surface mount, Class 320 manual bypass

Brand new in the box ... ready to mount on your house or business ... come and check it out. Should work for SMUD or PG&E for 400A electric power but double check the model number for your area.

$2400 takes it

Thanks,
Paul
916-4seven5-seven934

Additional Details:
Technical Description:
Ring Type; 4 AWG to 250 kcmil (Aluminum/Copper, Ground) Wire Size; Surface, Semi Flush Mounting; NEMA 3R Enclosure; 400 Ampere Current Rating; Underground Service Type; A-L Hub Type; Test Block Bypass Switch

UPC: 78590153954

Part Number: CUM400CB

Manufacturer: Square D

UPC: 78590153954
Enclosure: NEMA 3R
Mounting: SURFACE, SEMI FLUSH
Wire Size: 4 AWG TO 250 KCMIL (ALUMINUM/COPPER, GROUND)
Additional Information: WITH SINGLE MAIN SERVICE DISCONNECT INTERIOR
Catalog Number: CUM400CB
Brand Name: QO[R]
Type: RING
Main Disconnect Type: 25 KILOAMPERE INTERRUPTING RATING
Service Type: UNDERGROUND
Current Rating: 400 AMPERE
Bypass Switch Type: TEST BLOCK
Hub Type: A-L
CATALOG DESCRIPTION: METER MAINS, QO, CSED, RINGED SOCKET, 400A, SURFACE MOUNT, CLASS 320 MANUAL BYPASS
Category: Residential Meter Mains
Full Technical Description: Ring Type; 4 AWG to 250 kcmil (Aluminum/Copper, Ground) Wire Size; Surface, Semi Flush Mounting; NEMA 3R Enclosure; 400 Ampere Current Rating; Underground Service Type; A-L Hub Type; Test Block Bypass Switch; 25 Kiloampere Interrupting Rating Main Disconnect Type; QO[R] Brand; With Single Main Service Disconnect Interior
Manufacturer: Square D Co.
Manufacturer Brand: Square D Co.
Product Brochure: htt
Product Description: SQUARE D CUM400CB : METER MAIN UG 400A CLS 320 MANUAL BYPA
Sub-Category: Loadcenter Combination Meter Socket
UNSPSC: 39121102
UPC 12 Digit: 785901539544
Unique Product Key: 5701062

QO®, Meter Main, Ringed Socket, 400A, 25 kA, Surface Mount, 1-Phase, 43 H x 28.25 W x 7.87 D in.

SPECIFICATIONS
United Item Number 916198
Approximate Weight 115
Brand QO
Bypass Type Manual bypass;class 320
Catalog Number CUM400CB
Country of Origin MEX
Depth 7.87
Height 43.0
Hub Opening A-L
Line Side Wire Range AWG 4...250 kcmil aluminium)service ground;AWG 4...250 kcmil copper)service ground
Manufacturer Schneider Electric
Mounting Surface;semi flush field installed flange kit
Number Of Spaces 0.0
Number of Circuits 0.0
Type Meter Mains;Ringed
Width 28.25
PG and E and Sacramento Municipal Utility District compatible
