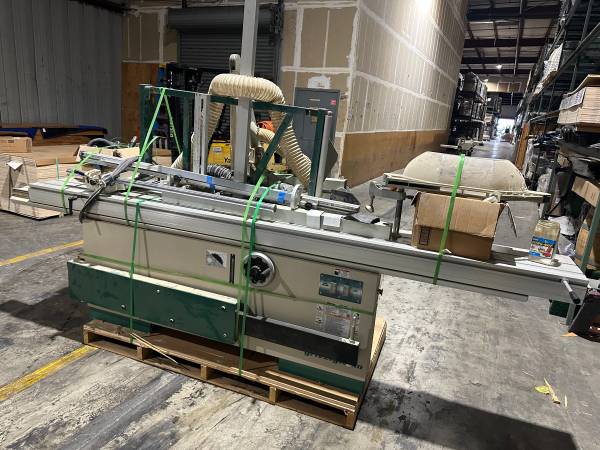

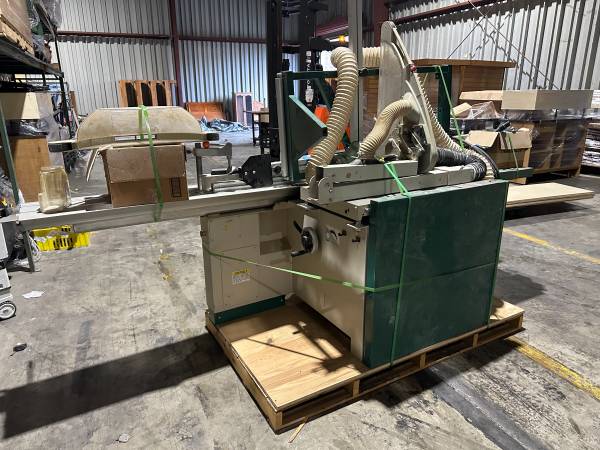

Grizzly Table Saw - $3,500 (Vacaville)
QR Code Link to This Post
The largest cutting capacity of any Grizzly 12" sliding table saw.
Ramp up production with the three-phase G0699 12" 7-1/2 HP Sliding Table Saw that can both crosscut and rip up to 126".
This sliding table saw also has an independent scoring blade motor that allows the main motor to focus all power on cuts up to 3-5/16" thick.
This saw features a riving knife that moves up and down with the blade, a micro-adjustable rip fence for traditional table saw cuts, and an extruded-aluminum, extendable crosscutting fence with two flip stops.
Best of all, this saw has the capabilities and options typically only found on much more expensive machines.
Whether you run 220V or 440V, this saw will have you ripping down sheet goods with the precision and reliability your business requires.
The G0699 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.
The G0699 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the sliding saw may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Specifications
Main motor: 7-1/2 HP, 220V/440V* (prewired for 220V), 3-phase, 20A/10A
Scoring motor: 1 HP, 3-phase, 3.2A/1.6A
Rip capacity: 49-3/4"
Crosscut capacity: 126"
Blade tilt: 0–45°
Max. depth of cut @ 90°: 3-5/16"
Max. depth of cut @ 45°: 2-3/8"
Main table size: 59" x 68"
Sliding table size: 126" x 14"
Floor-to-table height: 36"
Main blade size: 12"
Main blade arbor: 1"
Main blade speed: 4000 RPM
Scoring blade size: 4-3/4"
Scoring blade arbor: 20mm
Scoring blade speed: 8000 RPM
Number of dust ports: 2
Dust port size: 4", 5"
Footprint: 74-1/2" L x 35-1/2" W
Overall dimensions: 139" W x 133" D x 45" H
Approx. shipping weight: 1498 lbs.
