Speedway Motors Block Hugger Headers For Smallblock Chevy V8 - $125 (Sacramento)
Whitney near Concetta
QR Code Link to This Post

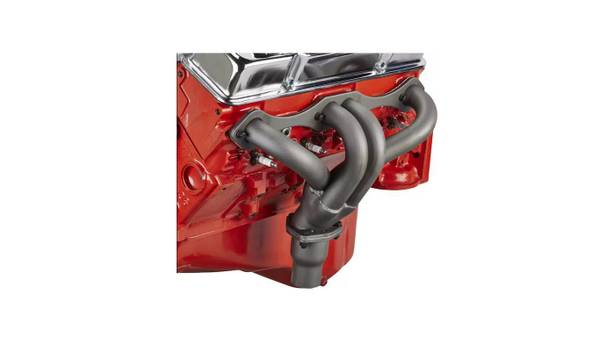

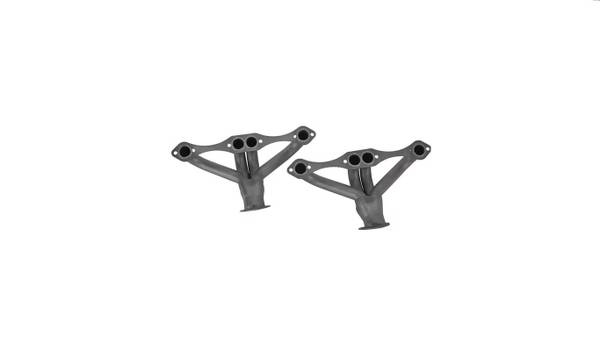

Speedway Block Hugger Headers And Exhaust Pipe Reducers
COPPER Header to head gaskets are included
"These compact, tight-fit headers are designed for Small Block Chevy (S/B Chevy) engines with round port heads, making them ideal for applications where space is limited. Featuring 1-1/2" primaries and a 2-1/2" collector, these block hugger headers simplify even the most challenging installations."
Designed for round port S/B Chevy cylinder heads
Driver side collector is approximately 2" from the pan rail
Passenger side collector is approximately 1/2" from the pan rail
Includes reducers, gaskets, and bolts
Will NOT fit angle plug heads
Will NOT clear 'clam shell' style motor mounts (common on 1973-up Chevy applications)
SPECS:
Brand Speedway Motors
Header Tube Type: Block Hugger
Exhaust Port Shape: Round
Flange Style: Standard
Primary Tube Diameter: 1-1/2"
Material Type: Steel
Color: Black
Weld-Up: No
Collector Diameter: 2-1/2 Inch
Collector Attachment Type: 3-bolt flange
Hardware Included: Yes
Gasket(s) Included: Yes
Collector Reducers Included: Yes
Collector Reducer Exit Diameter: 2"
GENERAL
Header Flange Thickness .375"
Header Dimension A: 3.75"
Header Dimension B: 10.13"
Header Dimension C: 18.38"
Port Height: 1.38"
Port Width: 1.38"
Sold in Quantity: Pair
Notes: Includes a pair of reducers (2.50" to 2.00")
$125/offer
Call: 9 1 6 6 9 6 2 5 4 3
Text: 9 1 6 2 4 3 8 3 0 1
