Laser Cutter Engraving Machine 100W Legend - Sacramento, California - $9,330 (Sacramento)
condition:
new
make / manufacturer:
LightObject
model name / number:
Legend
size / dimensions:
1200mm x 900mm
QR Code Link to This Post

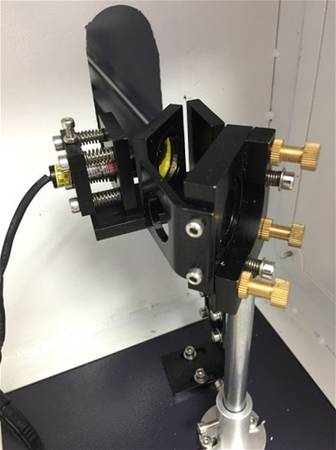

Power Z table included Features: Beam combiner + DSP controller (Lightburn supported) + Rotary connection ready
Youtube: https://www.youtube.com/watch?v=tcxYlFEhUXE

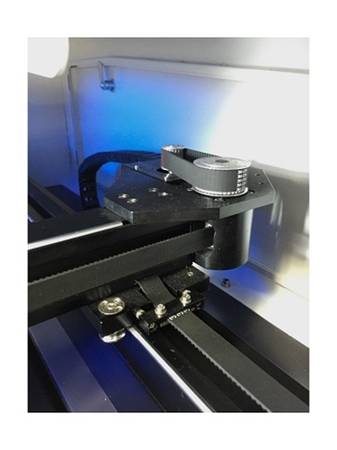

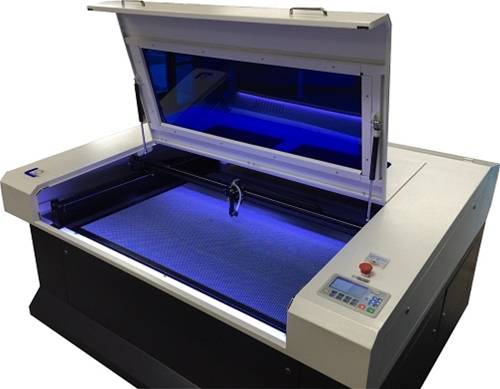

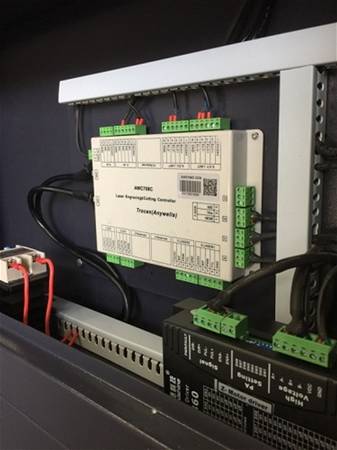

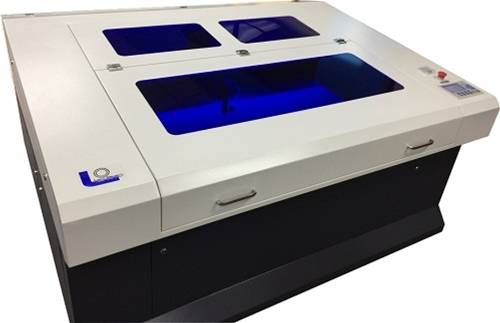

The Legend is a Professional grade engraving/cutting machine with the latest 4th generation DSP technology. It comes with the latest model laser DSP controller board. The laser head is installed on a roller wheel to obtain the highest speed possible
The controller supports up to 200 art files by uploading them from a USB memory stick. It's very convenient, and it's great to save time and a PC system's cost. The machine comes with user-friendly software enabling a user to work right after the machine setup. Or if you need to handle more complicated artwork, the software can integrate with CorelDraw X5~X8 & AutoCad. With these features, it'll provide you an excellent environment of "What you draw is what it will cut (engrave)"

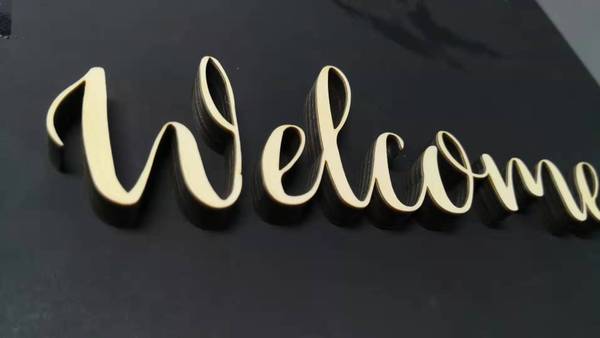

The software is capable of handling vector and raster graphics at the same time through different layers setup. The machine can engrave very fine lines and characters, plus it can do the cutting as well. A list of files supported: DXF, PLT, DST, DSB, BMP, GIF, JPG, PNG, MNG, ICO CUR, TIF, TGA, PCX, JBG, JP2, JPC, PGX, RAS, PNM, SKA, RAW.

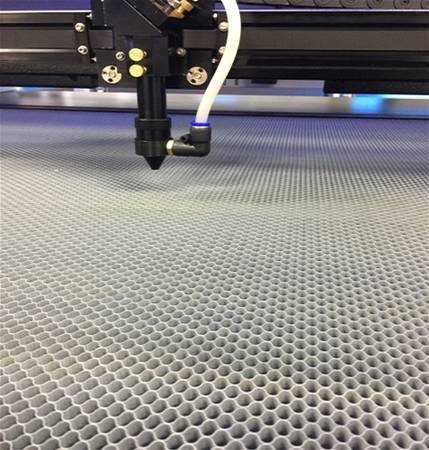

A high torque motor powers the Z table with 80lb lifting power. A quality made honeycomb flat bed allow better heat release from the object. With help from the power Z table, you can adjust the focus point for different height objects so much easier.
NOTE: Don't get fooled by those machines selling on eBay. The quality of those machines is questionable and provide no support! You will get full support from us!
Specification:
CO2 Power: 100Watt CO2 laser tube
Tube Trigger Volt: 28KV
Tube Operating Volt: 22KV
Operating voltage: AC 110, 10A, 50/60Hz. Optional AC220V
Current: 26~28mA
Tube Length: 1400mm (56.6")
Working area: 1220mm x 920mm (48"x 32")
Power Z table: Yes (200mm traveling distance)
Precision: 0.02mm , resolution: 0.05mm
Speed: 650mm/s for X , 400mm/s for Y during engraving,

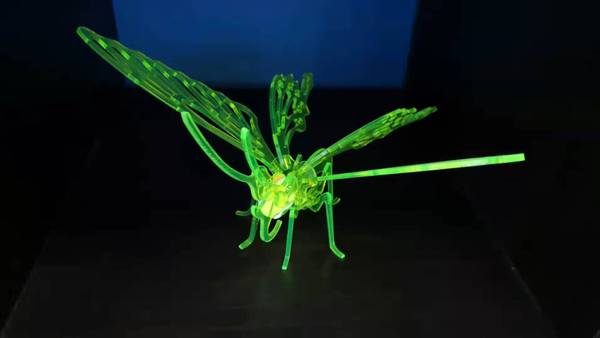

Engraving deep: 8mm for wood or 2mm for acrylic plastic. Multiple passes are ok
Wood cutting: up to 38mm (1.5")
Water Protection: Yes

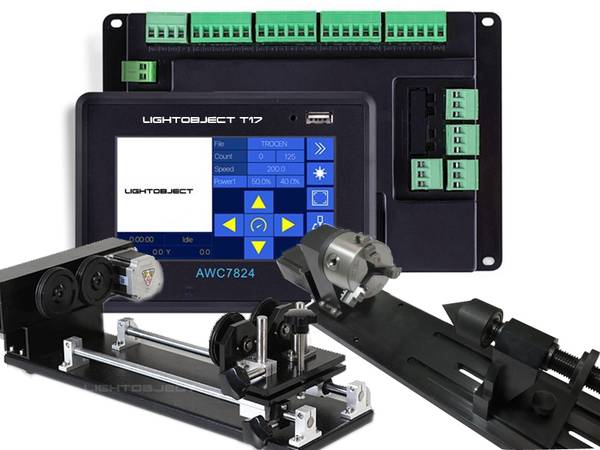

DSP Controller: Comes with a touchscreen or a LCD control
OS: Win7/ Win8 (32 bit/ 64 bit) Win10, Win11, or Mac/Linux with LightBurn
Interface: USB port or Ethernet
USB memory drive support: Yes
PPI support: Yes
Micro step panning: Yes
Real-time simulation: Yes
Cooling: Water Cooler
Support: BMP,GIF,PCX,TGA,PLT,CDR,DXF,AI,SVG
Application supported: CorelDraw X6~X8, Illustrator CS5, AutoCAD 2004 or higher version

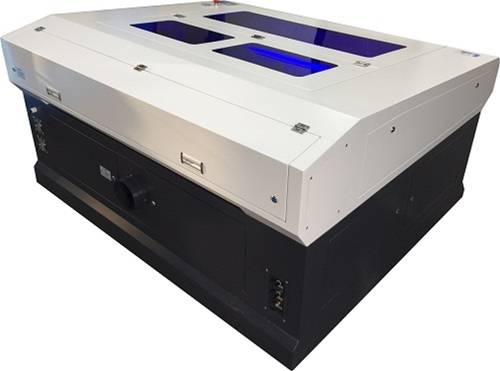

Size: 1455mm*1090mm*1100mm (58" x 43" x 44")
Weight:235Kg/520lb (shipping 260kg/572lb)
Warranty: 1 year on mechanic parts, 1 year on electronics, 6 months on laser tube
Price: $9,650 + 8.75% Ca tax
We will provide 4hrs of store training free of charge!
Welcome to bring samples to our shop for testing before bringing it home!
LightObject Laser Innovation www.LightObject.com
