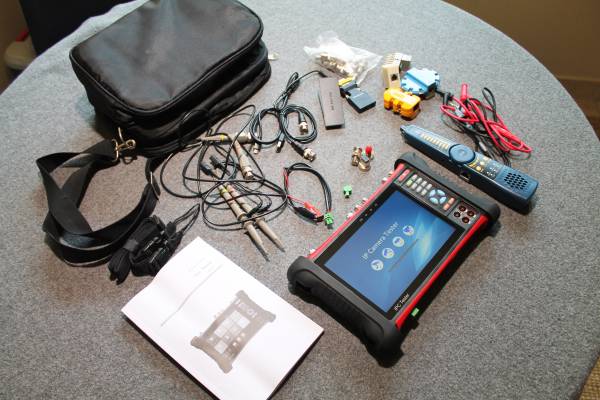

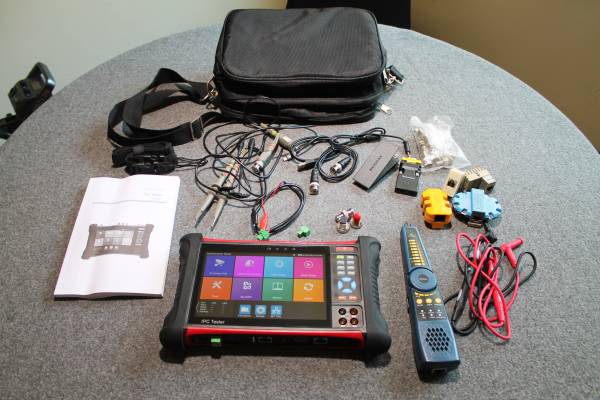

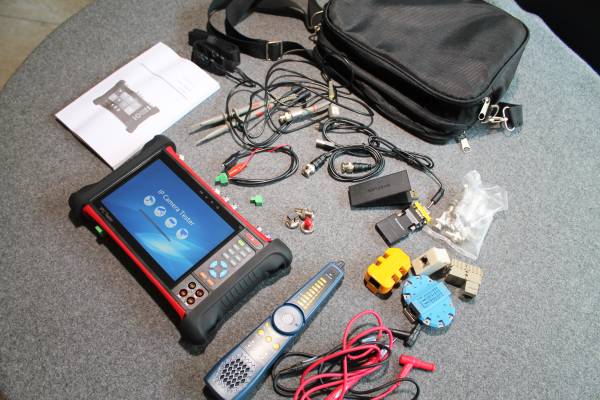

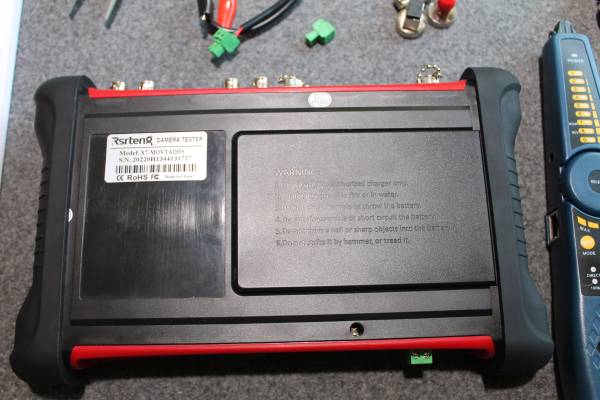

Rsrteng X7-MOVTADHS IP Analog Camera Tester 8MP CCTV Tester Monitor - $200 (Sacramento)
QR Code Link to This Post
Sent contact information to schedule pickup.
X7-MOVTADHS support IP+analog camera test+AHD+CVI+TVI+SDI+DigitalMultimeter+Optical
power meter+visual fault locater+TDR cable test+Video level meter+Cable tracer+UTP cable
test+RJ45 cable TDR test+HDMI in/out
Product Overview
The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920x1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
Application
●CCTV system installation and maintenance
●Network cabling project installation and maintenance
●Dome camera, IPTVI CVI AHD SDI 4K H.265 camera testing
●Video transmission channel testing
●PTZ controller
Main Function:
(1) 7 inch retina touch screen ,1920x1200 resolution. HDMI signal input, Support 1080p, 4K output;
(2) IP Camera test: Support H.265 mainstream test, 4K video display via mainstream ,4K IP Camera test(Max), IP discovery, IPC Test, ping IP, Rapid Onvif, RTSP play /Client APK;
(3) Coxial HD Camera test:(optional)
1. 8MP TVI test, 3840 x 2160P 15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu.
2. 5MP AHD test, 2592 x 1944P 12.5/20FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu.
3. 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu.
4. HD SDI/EX-SDI camera test, support 1080P 25/30/50/60 FPS.
(4) Powerful and useful fuction:(optional)
1. Optical power meter: Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range , -70 ～+10dBm, for optical power testing and Fiber link loss relative measurement
2. Visual fault locator:10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10KM
3. TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit. measurement range 1.2KM
4. Digital Multimeter: DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement;
(5) Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement;
(6) RJ45 cable TDR test: test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range is 180M.
(7) UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen;
(8) Cable tracer :search BNC cable, network cable and telephone cable from the mess cable;
(9) Rapid ONVIF,by one key to activate Hikvision,auto login and view images .
(10) Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back,
(11) PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc,Support IP+Analog +CVBS camera test. Color bar test; 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt);
(12) Can install your own Android APK, Like whatsapp, skype etc.
(13) TesterPlay: screen projection:tester, mobile phone and PC display at the same time (For android version mobile phone);
(14) DC 12A 2A power output/ USB 5V 2A power output/ PoE power output /HDMI output,Built in WIFI.
(15) Language support: English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese
